SKD2110

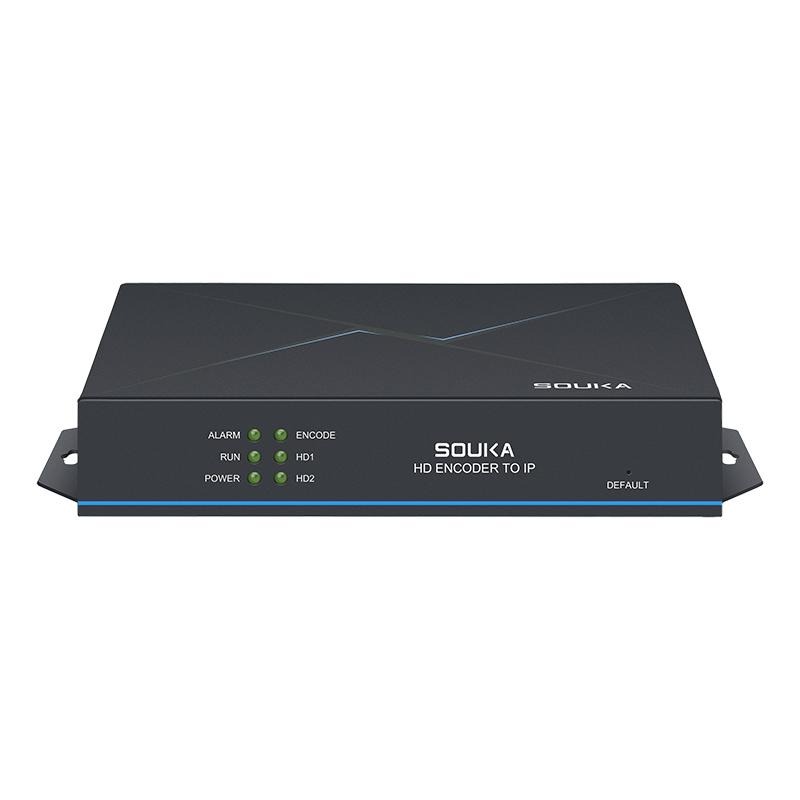

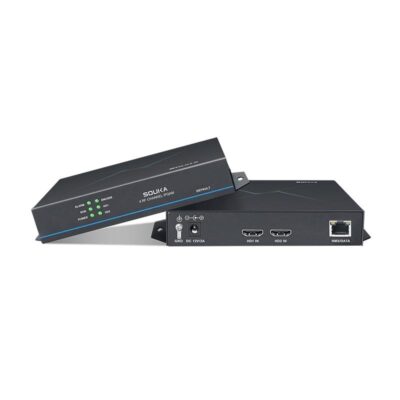

Dual HD to IP Encoder
FEATURES:
- Supports H.264 video encoding and AAC audio encoding
2. Supports input resolution up to 1080P_60 and output up to 1080P_30
3. Supports various of protocols including RTSP/RTMP/HTTP/HLS/UDP/RTP
4. Capable with customized text and image overlay function, which can be at any position on the screen.
5. Portable and low power consumption makes it 24 hours continuous working available.
6. User friendly WEB UI operation for quick set up
SPECIFICATION:

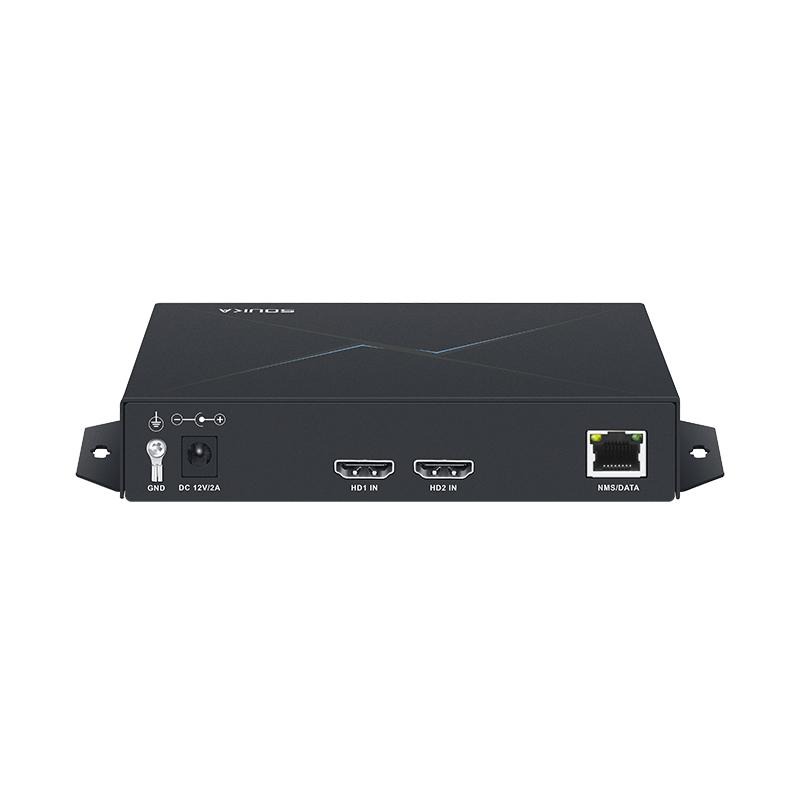

| Input Connector | HDMI *2 |
| Video Resolution | Up to 1080P_60 |
| Video Encoding | H.264 |
| Audio Encoding | AAC |
| Encoding Latency | 150~300 ms |
| Media Protocol | RTSP/RTMP/HTTP/HLS/UDP/RTP |
| Graphic Overlay | User-defined running text and image overlay |
| Output Stream | IP in SPTS |
| Output Port | RJ45 for both NMS and DATA in 100/1000M |
| Power Consumption | Less than 5W |
| Dimensions | 148*108*28mm |
TYPICAL CONNECTION:
